Description

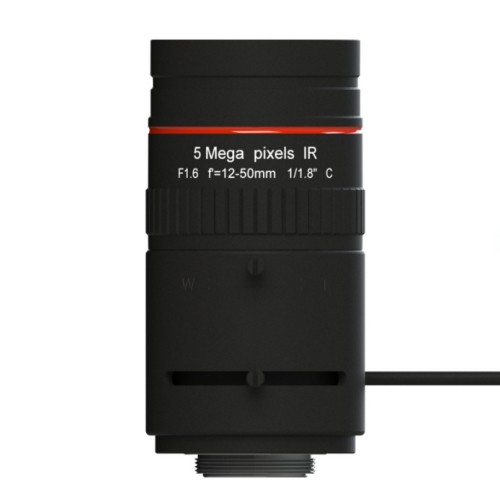

5Mega Pixel Varifocal Lens 12-50mm
- 5Mega Pixel Design
- Big Sensor at 1/1.8"
- Good DAY/NIGHT Performance
- CSmount
- Auto iris/ Manual-IRIS available
| SPECIFICATION | |||||||
| Image Size: | 1/1.7" | ||||||
| Mount Type: | CS | ||||||
| Focal-Length: | 11-50mm | ||||||
| Aperture Range: | F1.6 | ||||||
| Field Angle (DxHxV): | 1/1.7(4:3) | 1/1.8(16:9) | 1/2(4:3) | ||||
| Wide | Tele | Wide | Tele | Wide | Tele | ||
| D | 46.2 | 10.9 | 43.5 | 10.4 | 38.9 | 9.4 | |
| H | 36.3 | 8.8 | 37.5 | 9 | 30.7 | 7.5 | |
| V | 26.8 | 6.6 | 20.6 | 5.1 | 22.8 | 5.6 | |
| M.O.D: | 1.5m | ||||||
| Focus Operation: | Manual | ||||||
| Zoom Operation: | Manual | ||||||
| Iris Operation: | Auto(DC) | ||||||
| Back Focus: | 6.95-12.5mm | ||||||
| Resolution | 5MP | ||||||
| Dimension(mm): | φ47x99.7 | ||||||
