Description

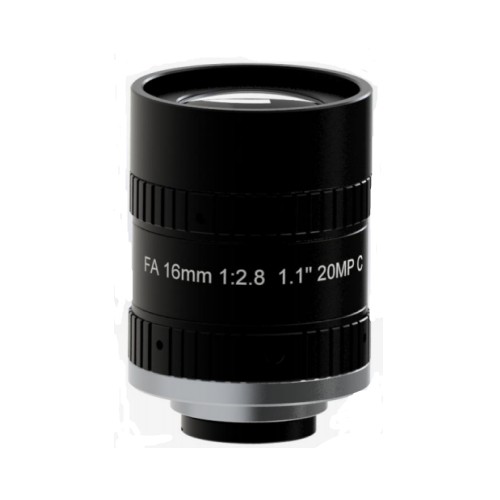

20MP Lens for Sensor 1.1''
Ultra Resolution Up to 20Mp.
Super Low distortion Lens.
| SPECIFICATIONS | ||
| Model No.,: | ID1628MHR-1.1 | |
| Imager Size: | 1.1" | |
| Mount Type: | C | |
| Focal-Length: | 16mm | |
| Aperture Range: | F2.8 | |
| Field of View(16:9) | D | 56.3° |
| H | 47.7° | |
| V | 33.7° | |
| Distortion（%） | -1.00% | |
| CRA | 12.9° (y=8.8mm) | |
| Resolution | 20Mega Pixel | |
| M.O.D: | 0.15m | |
| Focus Operation : | Manual | |
| Zoom Operation : | Fixed | |
| Iris Operation : | Manual | |
| Back Focus(Mechanism): | 9.5mm | |
| Weight(g) | 119g | |
| Dimension(mm): | Φ39×59.91mm | |
