Description

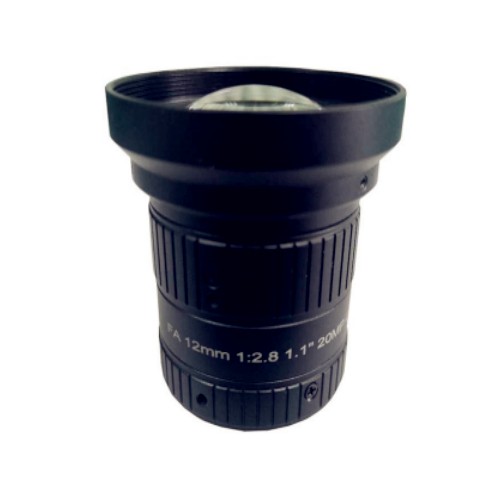

20MP Lens for Sensor 1.1''
Ultra Resolution Up to 20Mp.
Super Low distortion Lens.
| SPECIFICATIONS | ||
| Model No.,: | ID1228MHR-1.1 | |
| Imager Size: | 1.1" | |
| Mount Type: | C | |
| Focal-Length: | 12mm | |
| Aperture Range: | F2.8 | |
| Field of View(16:9) | D | 66.9° |
| H | 56° | |
| V | 43.3° | |
| Distortion（%） | -1.05% | |
| CRA | 14.5° @17.6mm | |
| Related illumination | 46% @17.6mm | |
| Working Wavelength | 400-700nm | |
| Resolution | 20Mega Pixel | |
| M.O.D: | 0.1m | |
| Focus Operation : | Manual | |
| Zoom Operation : | Fixed | |
| Iris Operation : | Manual | |
| Back Focus(Mechanism): | 10.63mm | |
| Weight(g) | 130g | |
| Dimension(mm): | Φ46.5×43.3mm | |
