Product Description:
New Alert!

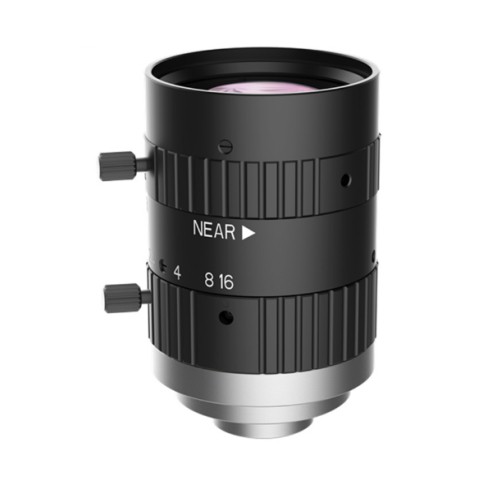

8Mega Pixel C mount Lens 16mm for 1/1.8" sensor
8MEGA PIXEL FA LENS
Very compact design
good for factory automation and machine vision applications.
Super Low distortion.
| SPECIFICATIONS | ||
| Model No.,: | ID1628MHR | |
| Imager Size: | 1/1.8" | |
| Mount Type: | C | |
| Focal-Length: | 16mm | |
| Aperture Range: | F2.8 | |
| Field of View(16:9) | 1/1.8" | 31.0°(D)*27.5°(H)*15.7°(V) |
| 1/2" | 28.2°(D)*24.7°(H)*14.0°(V) | |
| 1/2.5" | 25.4°(D)*22.2°(H)*12.6°(V) | |
| TTL | 50mm | |
| M.O.D: | 0.1m | |
| Focus Operation : | Manual | |
| Zoom Operation : | Fixed | |
| Iris Operation : | Manual | |
| Back Focus: | 13mm | |
| Distortion（%） | <0.5% | |
| Working Wavelength | 400-700nm | |
| Optical Element | 11G | |
| Relative Illumination | >0.9 | |
| Filter Mount | M25.5*0.5 | |

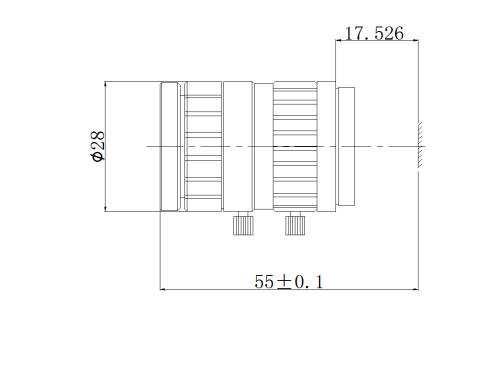

| Dimension(mm): | Φ28×50mm | |
