Description

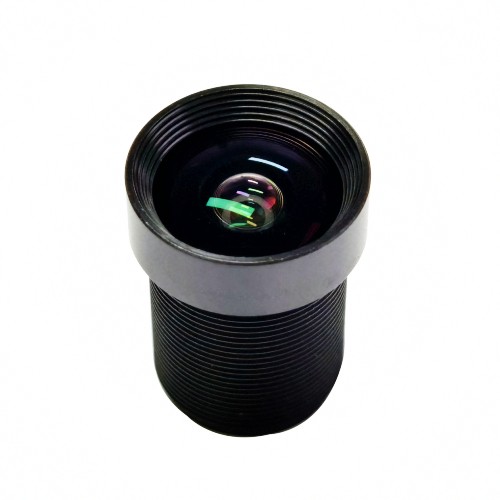

- 12MP Ultra Low Distortion Lens For IMX334 sensor camera
- For sensor 1/1.8" cameras
- Applied for Facial recognition & Security & Scanning/ AI
- Good performance
| SPECIFICATIONS | ||
| Model Number | ID05425FBHR | |
| Imager Size: | 1/1.8" (￠8.9) | |
| Mount Type: | M12 | |
| Focal-Length: | 5.4mm | |
| Aperture Range: | F2.5 | |
| Field of View: (DxHxV) | D: | 79.4° |
| H: | 72° | |
| V: | 43.8° | |
| CRA | 11.8° | |
| M.O.D: | 0.3m | |
| Focus Operation : | Fixed | |
| Zoom Operation : | Fixed | |
| Iris Operation : | Fixed | |
| Back Focus: | 6.27mm | |
| Optical Distortion： | -3.20% | |
| Lens construction： | 10glasses | |
| IR Correction | YES | |
| Resolution | 10Mega Pixel | |
| Dimension(mm): | ￠13.5x18.7mm | |
