Description

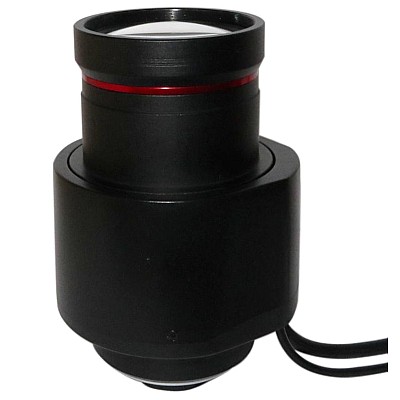

- 8MP Varifocal Motorized Lens
- 1/1.7"11-50mm 5X zoom
- DC iris
| SPECIFICATION | |||||||
| MODEL Number: | ID1150ZDHR | ||||||
| Image Size: | 1/1.7" | ||||||
| Mount Type: | CS | ||||||
| Focal-Length: | 11-50mm | ||||||
| Aperture Range: | F1.4 | ||||||
| Field Angle (DxHxV): | 1/1.7(4:3) | 1/1.8(16:9) | 1/2(4:3) | ||||
| Wide | Tele | Wide | Tele | Wide | Tele | ||
| D | 46.2 | 10.9 | 43.5 | 10.4 | 38.9 | 9.4 | |
| H | 36.3 | 8.8 | 37.5 | 9 | 30.7 | 7.5 | |
| V | 26.8 | 6.6 | 20.6 | 5.1 | 22.8 | 5.6 | |
| CRA | 0.16° (Wide); 0° (Tele) | ||||||
| M.O.D: | 1.5m | ||||||
| Focus Operation: | Motorized | ||||||
| Zoom Operation: | Motorized | ||||||
| Iris Operation: | Auto iris | ||||||
| Back Focus: | 6.95-12.5mm | ||||||
| Resolution | 8MP | ||||||
| Dimension(mm): | φ50x98.4 | ||||||
