Description
Product Description:
FA LENS NEW ALERT!
8MEGA PIXEL compact DESIGN
C mount lens for 1/1.8" sensor CCD.
Super Low Distortion.
Good for factory automation and MA applications!
| SPECIFICATIONS | ||
| Model No.,: | ID3528MHR | |
| Imager Size: | 1/1.8" | |
| Mount Type: | C | |
| Focal-Length: | 35mm | |
| Aperture Range: | F2.8 | |
| Field of View(16:9) | 1/1.8" | 14.7°(D)*12.6°(H)*7.2°(V) |
| 1/2" | 13.0°(D)*11.4°(H)*6.4°(V) | |
| 1/2.5" | 11.6°(D)*10.2°(H)*5.7°(V) | |
| Optical TTL | 48mm | |
| M.O.D: | 0.2m | |
| Focus Operation : | Manual | |
| Zoom Operation : | Fixed | |
| Iris Operation : | Manual | |
| Back Focus: | 11mm | |
| Distortion（%） | <0.2% | |
| Working Wavelength | 400-700nm | |
| Optical Element | 6G | |
| Relative Illumination | >0.9 | |
| Filter Mount | M25.5*0.5 | |
| Dimension(mm): | Φ28×53.7mm | |

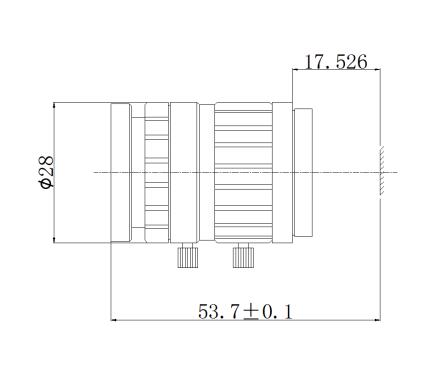

Lens Drawing:
